Cone Crusher Concave/Mantle S75b S75D S155b S155D S240b S240
Cone Crusher Concave/Mantle S75b S75D S155b S155D S240b S240d -High Manganese series --Wear Parts for Mining equipment Main application for high wear resistance use such as Jaw crusher plate, Cone cru
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
|---|
Specifications
| Parameter | Value |
|---|---|
| Product Name | Cone Crusher Concave/Mantle S75b S75D S155b S155D S240b S240 |
| Category | Cone Crusher Parts |
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
| Surface Treatment | Sand Blast |
| Hardness | HRC 22-25, HRC 58-62 |
| Origin | Hunan, China |
| Certification | ISO9001:2008 |
| Customization | Available (drawing/sampling) |
Product Details

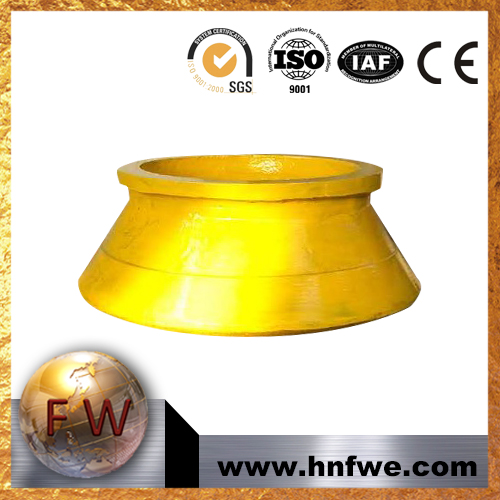

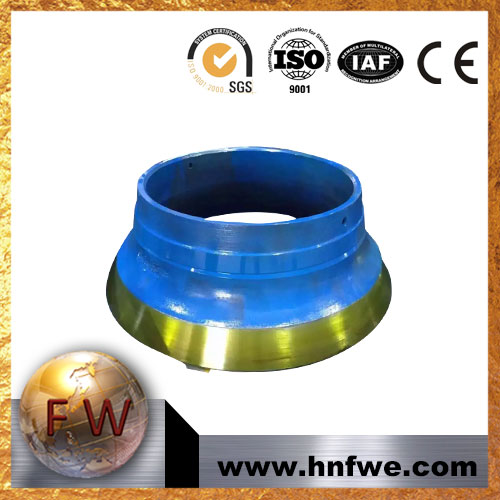

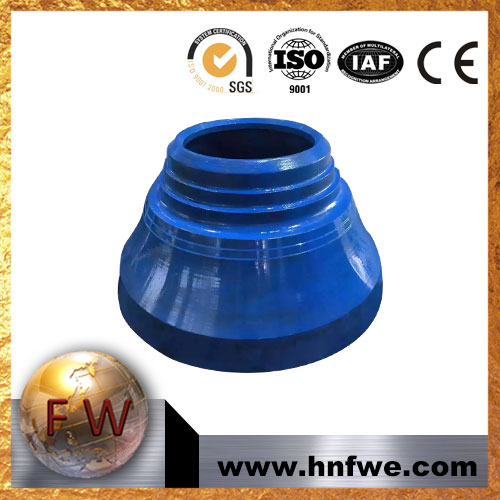

Cone Crusher Concave/Mantle S75b S75D S155b S155D S240b S240d
-High Manganese series
–Wear Parts for Mining equipment

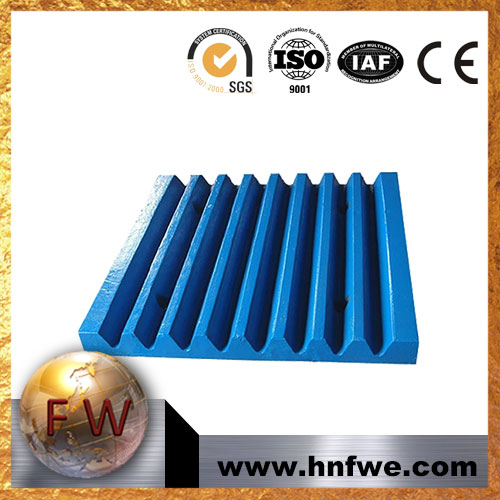

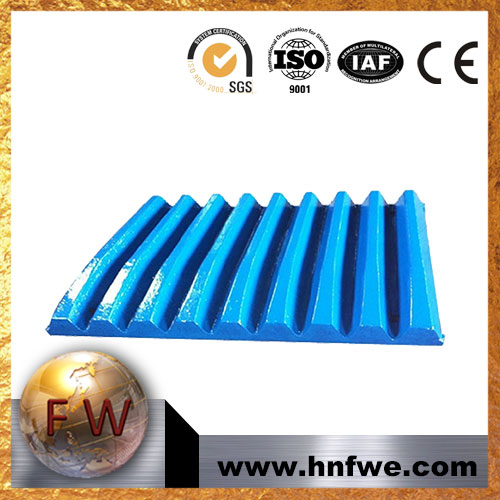

Main application for high wear resistance use such as Jaw crusher plate, Cone crusher bowl liner, Impact crusher lining board, Ball mill liner and the chain links for Dredge ect…
-Our advantage:
High Manganese Casting wear parts processed by our foundry, using special heat-treatment process. It has a service life 10% longer than those made of traditional high manganese steel. Our products with good performance in different working condition can greatly decrease the time of examination & repair and the use-cost.
- Cone crusher parts main Material:
High manganese steel: Mn13%, Mn18%, Mn22%, Mn24%;
High chromium iron: Cr20, Cr24 up
Carbon steel
- High Manganess Casting Material Chemical Composition(%)
| Code Elem. | C | Mn | Si | Cr | Mo | P | S |
| ZGMn13-1 | 1.0-1.45 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-2 | 0.90-1.35 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-3 | 0.9-1.35 | 11.0-14.0 | 0.30-0.8 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-4 | 0.9-1.30 | 11.0-14.0 | 0.30-0.8 | 1.50-2.0 | - | ≤0.09 | ≤0.04 |
| ZGMn13-5 | 0.75-1.30 | 11.0-14.0 | 0.30-1.0 | - | 0.90-1.2 | ≤0.09 | ≤0.04 |
