What materials are available for this crusher wear part?

This part is available in high manganese steel (Mn13, Mn18Cr2, Mn22Cr2) and high chrome iron. Materials are customizable based on your working conditions.

Do you offer aftermarket replacement for Metso, Sandvik, Symons crushers?

Yes, we manufacture aftermarket-equivalent wear parts for Metso HP/GP, Sandvik CH/CS/H/S, Symons 2FT-7FT, and many other crusher brands. Custom production by drawing or sample is available.

What is the lead time and minimum order quantity?

Standard lead time is 15-30 days. We accept small batch orders from 1 piece for sampling. Sample orders typically ship within 7-15 days.

Do you provide material test reports?

Yes, every shipment includes a Material Test Report (MTR) with chemical composition, hardness results, heat treatment record, and dimension report. ISO 9001:2015 and SGS certified.

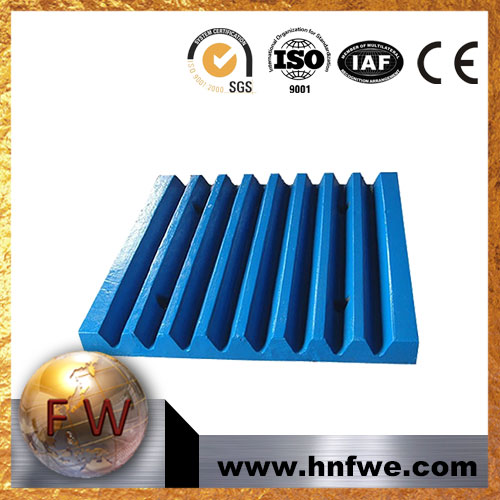

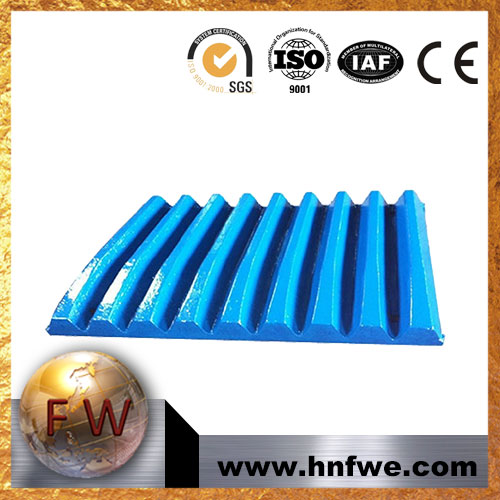

Durable Jaw Plate. Jaw Fixed Quarry 1p N11924295

Durable Jaw Plate. Jaw Fixed Quarry 1p N11924295 image

Durable Jaw Plate. Jaw Fixed Quarry 1p N11924295

Durable Jaw Plate. Jaw Fixed Quarry 1p N11924295 is a Jaw Crusher Parts produced by Fengwei. Made from Mn13Cr2, Mn13, it offers excellent wear resistance and impact toughness. Aftermarket wear parts are available by drawing or sample, ISO 9001:2015 certified.

Product Specifications

Material	Mn13Cr2, Mn13

Applications: Mining, Quarry, Aggregate, Cement, Recycling

Customization: aftermarket by drawing or sample. Materials customizable (Mn13 ~ Mn22Cr2, High Chrome).

Request A Quote Chat on WhatsApp 🔍 Find Parts for My Model

Technical Parameters

Parameter	Value
Product Name	Durable Jaw Plate. Jaw Fixed Quarry 1p N11924295
Category	Jaw Crusher Parts
Material	Mn13Cr2, Mn13
Surface Treatment	Sand Blast
Hardness	HRC 22-25
Origin	Hunan, China
Certification	ISO 9001:2015
Customization	Available (drawing/sampling)

Product Details

Specifications:

1.high manganese steel castings jaw plate (crusher part)

2.Durable Performance

3.Fixed and swing, and toggle plate

4.Aftermarket available

Applicational Area:The products are widely used in the fields of stone mine,iron mine,metallurgy,chemical and cement.

Any custom-made part according to drawings or sample part is welcome!

Material specification:

Code Elem	C	Mn	Si	Cr	Mo	P	S
ZGMn13-1	1-1.45	11-14	0.3-1	-	-	≤0.09	≤0.04
ZGMn13-2	0.9-1.35	11-14	0.3-1	-	-	≤0.09	≤0.04
ZGMn13-3	0.9-1.35	11-14	0.3-0.8	-	-	≤0.09	≤0.04
ZGMn13-4	0.9-1.3	11-14	0.3-0.8	1.5-2	-	≤0.09	≤0.04
ZGMn13-5	0.75-1.3	11-14	0.3-1	-	0.9-1.2	≤0.09	≤0.04

Product Advantages

✓ aftermarket quality, direct replacement

✓ High wear resistance & long service life

✓ ISO 9001:2015 & SGS certified

✓ Custom material & size available

jaw plate

From Inquiry to Delivery - How It Works

Trusted by customers in 30+ countries. Standard lead time 15-30 days.

Send Inquiry

Email + equipment model

Get Quote

Within 24 hours

Production

15-30 days (MTR included)

Delivery

Sea/Air shipping
