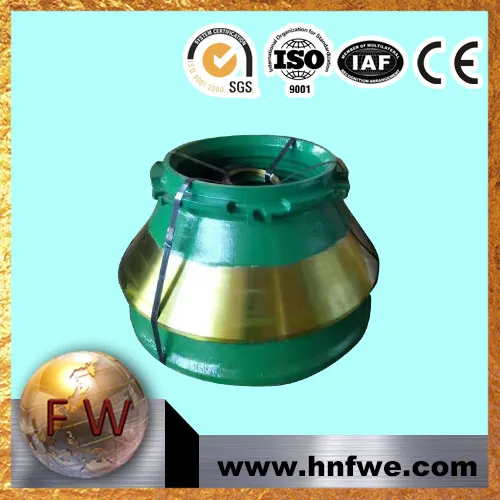

High Manganese Concave/Mantle/Blow Liner for Metso Crusher
High Manganese Concave/Mantle/Blow Liner for Metso Crusher is a Cone Crusher Parts produced by Fengwei. Made from Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, it offers excellent wear resistance and impact toughness. Compatible with Metso crushers. Aftermarket wear parts are available by drawing or sample, ISO 9001 certified.
Product Specifications
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
|---|---|
| Compatible Brand | Metso |
Applications: Mining, Quarry, Aggregate, Cement, Recycling
Customization: aftermarket by drawing or sample. Materials customizable (Mn13 ~ Mn22Cr2, High Chrome, Tungsten Carbide).
Technical Parameters
| Parameter | Value |
|---|---|
| Model NO. | fengwei |
| Surface Treatment | Sand Blast |
| Material | Cast Steel |
| Color | Customized |
| Content of Mn | 13%,18%,20%,24% |
| Trademark | FENGWEI |
| Specification | ISO |
| HS Code | 84749000 |
| Certification | SGS, ISO 9001:2008 |
| Manufacturing Process | Casting |
| Size | Customized |
| Application | Cone Crusher |
| Product Advantage | Durable and Stable |
| Transport Package | Wooden Case or Pallet, Suitable for Sea Transport. |
| Origin | Hunan |
Product Details
Basic Info
Model NO.: fengwei
Surface Treatment: Sand Blast
Material: Cast Steel
Color: Customized
Content of Mn: 13%,18%,20%,24%
Trademark: FENGWEI
Specification: ISO
HS Code: 84749000
Certification: SGS, ISO 9001:2008
Manufacturing Process: Casting
Size: Customized
Application: Cone Crusher
Product Advantage: Durable and Stable
Transport Package: Wooden Case or Pallet, Suitable for Sea Transport.
Origin: Hunan
Product Description

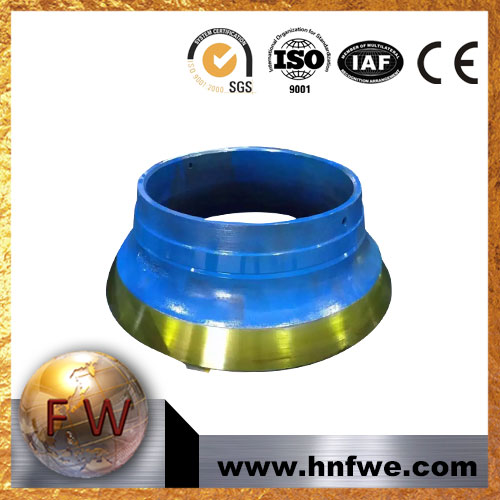

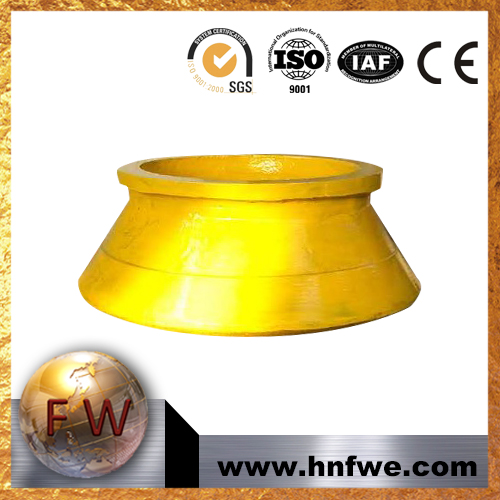

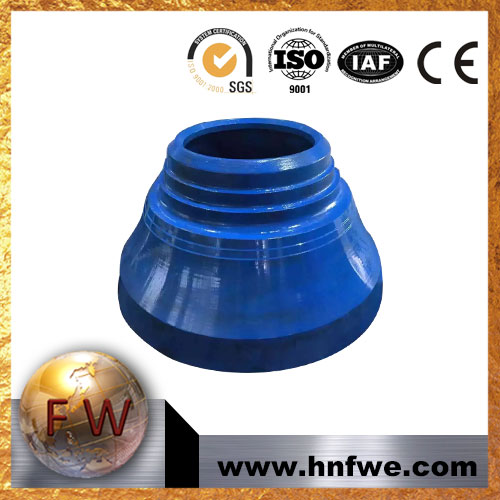

High manganese concave/mantle/blow liner for Metso crusher
1. Cone crusher parts main Material:
High manganese steel: Mn13%, Mn18%, Mn22%, Mn24%;
High chromium iron: Cr20, Cr24 up
Carbon steel
2. High Manganess Casting Material Chemical Composition(%)
Code ElemCMnSiCrMoPS
ZGMn13-21.0-1.4512.5-13.50.30-1.00.02-≤ 0.09≤ 0.04
ZGMn18-21.0-1.3517.5-18.50.30-1.00.02-≤ 0.09≤ 0.04
3. More crusher spare parts:

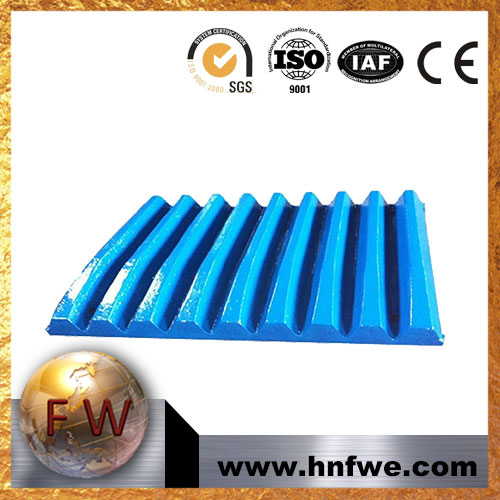

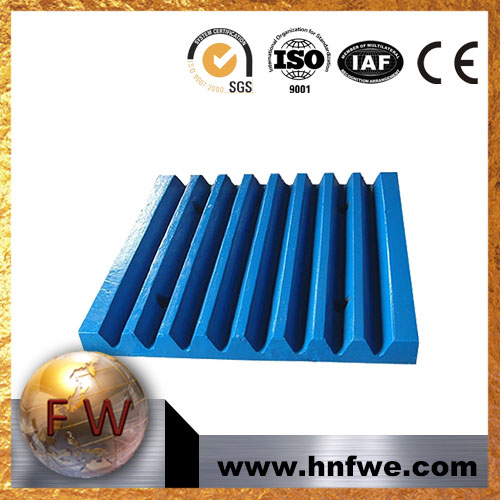

3.1Jaw crusher parts:
Jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, tension rod, toggle gasket, spring, tension rod, eccentric shaft, end cover, block, moving jaw, frame, spring, bolt and nuts, washer.
3.2 Impact crusher parts:
Blow bar(flat hammer), adjustment bar, impact plate, liner plate, frame(impact rack), cover, , bolts, nuts, washer, etc
3.3 Hammer crusher parts
Hammer head, liner plate, bolt, nuts, washer
3.4 Cone crusher parts:
| High Manganess Casting Material Chemical Composition | |||||||
|---|---|---|---|---|---|---|---|
| Code Elem. | C | Mn | Si | Cr | Mo | P | S |
| ZGMn13-1 | 1.0-1.45 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-2 | 0.90-1.35 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-3 | 0.9-1.35 | 11.0-14.0 | 0.30-0.8 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-4 | 0.9-1.30 | 11.0-14.0 | 0.30-0.8 | 1.50-2.0 | - | ≤0.09 | ≤0.04 |
| ZGMn13-5 | 0.75-1.30 | 11.0-14.0 | 0.30-1.0 | - | 0.90-1.2 | ≤0.09 | ≤0.04 |
Product Advantages
