High manganese fixed jaw plate swing jaw plate jaw crusher s
High manganese fixed jaw plate swing jaw plate jaw crusher s is a Cone Crusher Parts produced by Fengwei. Made from Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12, it offers excellent wear resistance and impact toughness. Compatible with Metso crushers such as Metso C63. Aftermarket wear parts are available by drawing or sample, ISO 9001 certified.
Product Specifications
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12 |
|---|---|
| Compatible Brand | Metso |
| Compatible Model | Metso C63, Metso C80, Metso C100, Metso C110, Metso C125 |
Applications: Mining, Quarry, Aggregate, Cement, Recycling
Customization: aftermarket by drawing or sample. Materials customizable (Mn13 ~ Mn22Cr2, High Chrome, Tungsten Carbide).
Technical Parameters
| Parameter | Value |
|---|---|
| Product Name | High manganese fixed jaw plate swing jaw plate jaw crusher s |
| Category | Cone Crusher Parts |
| Applicable Model | Metso C63, Metso C80, Metso C100, Metso C110, Metso C125 |
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12 |
| Surface Treatment | Sand Blast |
| Hardness | HRC 22-25, HRC 58-62 |
| Origin | Hunan, China |
| Certification | ISO9001:2008 |
| Customization | Available (drawing/sampling) |
Product Details

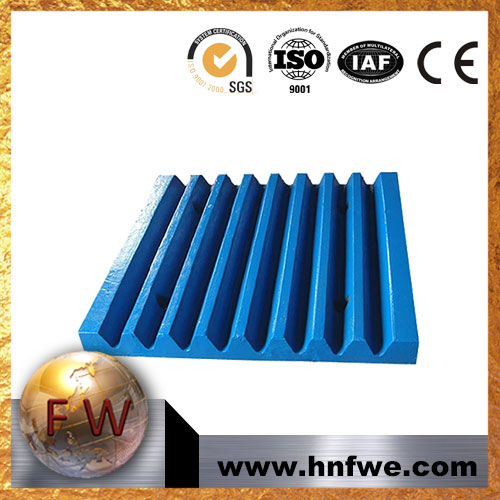

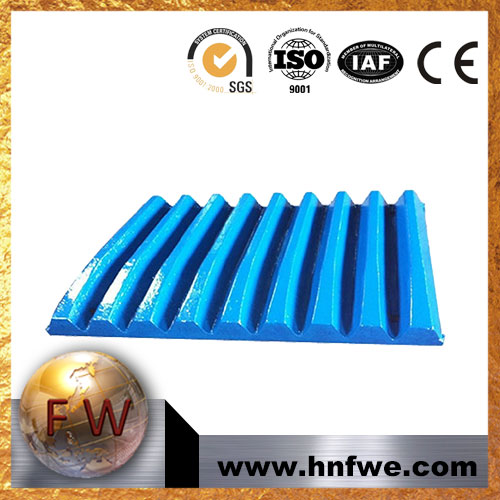

High manganese fixed jaw plate swing jaw plate jaw crusher spare parts
Our jaw plates are made of high manganese steels which are of good quality and long service life.
We produces various crusher in finished set such as jaw crusher, impact crusher, hammer crusher, cone crusher, roller crusher, and other matching equipment such as, vibrating feeder, vibration screen, sand washer , belt conveyor and kinds of accessories of the crusher.
Material:
1).High Manganese Casting:
Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi...
2).High Chrome Steel:
Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
Cr25Mo0.5Ni0.5...
3).Any other material as customer's requirement.
Chemical Component of jaw plate:
| Material | C | Mn | Cr | Si | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|
| Mn13Cr2 | 1.0~1.4 | 12~15 | 1.7~2.2 | 0.3~1.0 | - | - | - |
| Mn18Cr2 | 1.0~1.4 | 17~19 | 1.8~2.2 | 0.3~1.0 | - | - | - |
| Cr12 | 2.0~3.3 | ≤2.0 | 11~14 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr15 | 2.0~3.3 | ≤2.0 | 11~14 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr20 | 2.0~3.3 | ≤2.0 | 14~18 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr26 | 2.0~3.3 | ≤2.0 | 23~30 | ≤1.2 | ≤3.0 | ≤2.5 | ≤2.0 |
The commom used type in domestic market:
150*750 250*400 250*750 250*1000 250*1200
300*1300 4000*600 500*750 600*900 750*1060
900*1200 1000*1200 1200*1500
The common used model type overseas:
Metso:C63 C80 C100 C110 C125 C140 C160 C200
JM907 JM1108 JM1208 JM1211 JM1312 JM1511
Product Advantages
