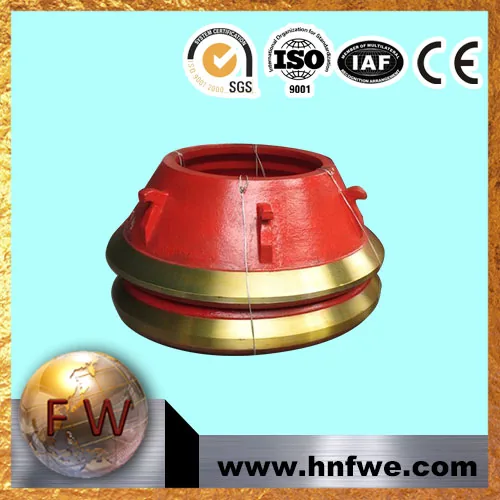

High Manganese Steel Cone Crusher Parts for Metso, Symons
High Manganese Steel Cone Crusher Parts for Metso, Symons is a Cone Crusher Parts produced by Fengwei. Made from Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13, High Chrome, it offers excellent wear resistance and impact toughness. Compatible with Metso, Symons crushers such as Pegson: Lokomo. Aftermarket wear parts are available by drawing or sample, ISO 9001 certified.
Product Specifications
| Material | Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13, High Chrome |
|---|---|
| Compatible Brand | Metso, Symons |
| Compatible Model | Pegson: Lokomo; Symons: Nordberg |
Applications: Mining, Quarry, Aggregate, Cement, Recycling
Customization: aftermarket by drawing or sample. Materials customizable (Mn13 ~ Mn22Cr2, High Chrome, Tungsten Carbide).
Technical Parameters
| Parameter | Value |
|---|---|
| Model NO. | FW or customized |
| Casting Form Material | Wood or Foam |
| Casting Form Usage Count | Disposable |
| Surface Roughness | Ra6.3 |
| Standard | AISI |
| Size | Customized |
| Application | Cone Crusher |
| Product Advantage | Durable and Stable |
| Trademark | FENGWEI |
| Specification | ISO |
| HS Code | 84749000 |
| Casting Method | Sand Casting or Lost Foam Casting |
| Casting Metal | Cast Steel |
| Surface Treatment | Sand Blast |
| Machining Tolerance | +/-0.15mm |
| Certification | SGS, ISO 9001:2008 |
| Color | Customized |
| Content of Mn | 13%, 18%, 20%, 24% |
| Aftermarket Service | Yes |
| Transport Package | Wooden Case or Pallet, Suitable for Sea Transport. |
| Origin | Hunan |
Product Details
Basic Info
Model NO.: FW or customized
Casting Form Material: Wood or Foam
Casting Form Usage Count: Disposable
Surface Roughness: Ra6.3
Standard: AISI
Size: Customized
Application: Cone Crusher
Product Advantage: Durable and Stable
Trademark: FENGWEI
Specification: ISO
HS Code: 84749000
Casting Method: Sand Casting or Lost Foam Casting
Casting Metal: Cast Steel
Surface Treatment: Sand Blast
Machining Tolerance: +/-0.15mm
Certification: SGS, ISO 9001:2008
Color: Customized
Content of Mn: 13%, 18%, 20%, 24%
Aftermarket Service: Yes
Transport Package: Wooden Case or Pallet, Suitable for Sea Transport.
Origin: Hunan
Product Description
High Manganese Steel Cone Crusher Parts for Metso,Symons
Fengwei is a professional crusher wear parts Manufacturer,we supply Aftermarket Service for many famous Crusher brands, including:
Metso | Pegson | Lokomo |Svedala | Allis Chalmers | Symons | Nordberg | Fintec | Finlay | Extec | Kue-Ken/Brown Lennox | LOKOMO | Telsmith,etc
Customized request is available, we accept the sample processing or drawing processing.
1. Cone crusher parts main Material:
High manganese steel: Mn13%, Mn18%, Mn22%, Mn24%;
High chromium iron: Cr20, Cr24 up
Carbon steel
2. High Manganess Casting Material Chemical Composition(%)
Code ElemCMnSiCrMoPS
ZGMn13-21.0-1.4512.5-13.50.30-1.00.02-≤ 0.09≤ 0.04
ZGMn18-21.0-1.3517.5-18.50.30-1.00.02-≤ 0.09≤ 0.04
3. More crusher spare parts:
3.1Jaw crusher parts:

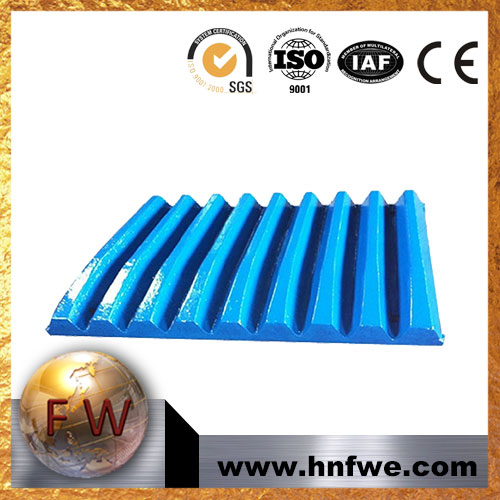

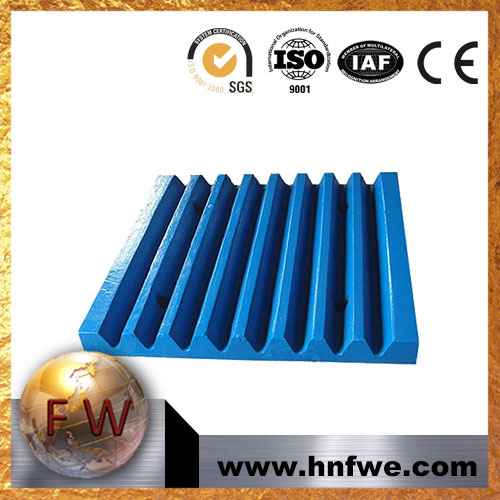

Jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, tension rod, toggle gasket, spring, tension rod, eccentric shaft, end cover, block, moving jaw, frame, spring, bolt and nuts, washer.
3.2 Impact crusher parts:
Blow bar(flat hammer), adjustment bar, impact plate, liner plate, frame(impact rack), cover, , bolts, nuts, washer, etc
3.3 Hammer crusher parts
Hammer head, liner plate, bolt, nuts, washer

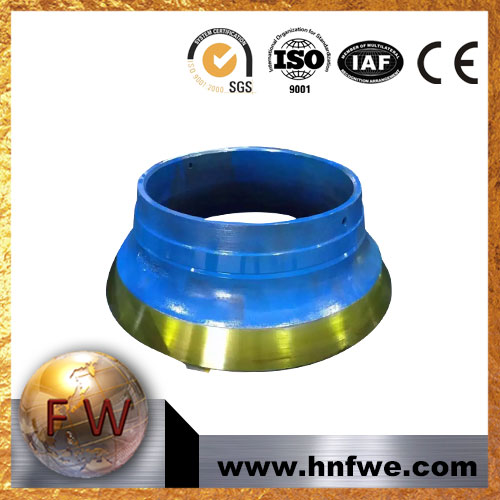

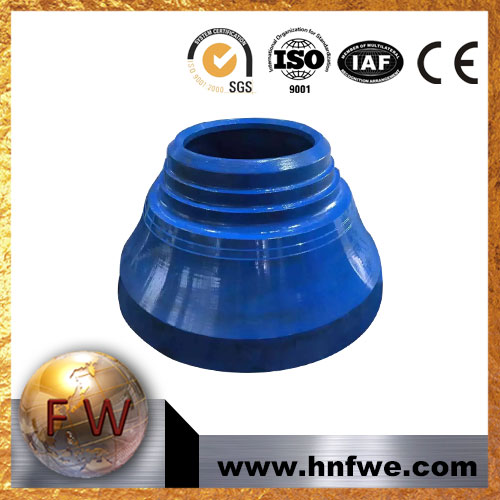

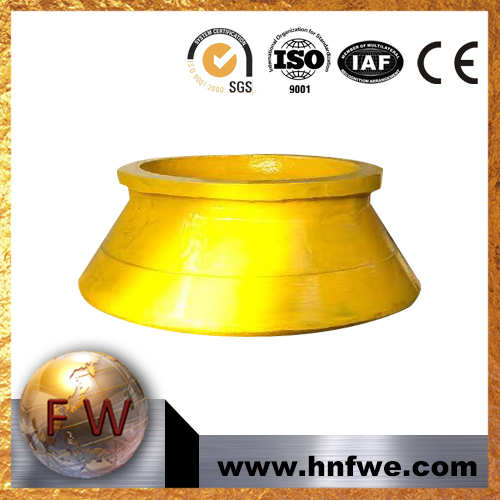

3.4 Cone crusher parts:
High Manganess Casting Material Chemical Composition
| Material Code | C | Mn | Si | Cr | P | S |
|---|---|---|---|---|---|---|
| ZGMn13Cr2 | C:0.9-1.3 | Mn:11.0-14.0 | Si:0.3-1.0 | Cr:1.5-2.5 | P:≤0.06 | S:≤0.04 |
| ZGMn18Cr2 | C:1.1-1.5 | Mn:16.5-19.0 | Si:≤0.8 | Cr:1.5-2.5 | P:≤0.07 | S:≤0.04 |
| ZGMn22Cr2 | C:1.1-1.4 | Mn:20-24 | Si:≤0.8 | Cr:1.5-2.5 | P:≤0.07 | S:≤0.04 |
Fengwei Full Range for Crusher Wear Liners & Parts:
| Crusher Wear Liners & Parts:
Cone Crushers: H2800 H3800 H4800 H6800 H7800 H8800
S3800 S4800 S6800
Gyratory Crushers:CS420/S2800, CS430/S3800, CS440/S4800, CS660/S6800
Jaw Crushers:JM907 JM1107 JM1108 KM1206 JM1208 JM1211 JM1312 JM1511 JM1513 |
|—| | METSO Crusher Wear Liners & Parts:
METSO Cone Crushers: HP100,HP200,HP300,HP400,HP4,HP500,HP700,HP800
METSO Gyratory Crushers: GP100,GP300,GP500
METSO Jaw Crushers: C63 C80 C100 C110 C125 C140 C160 C200 |
Product Advantages
