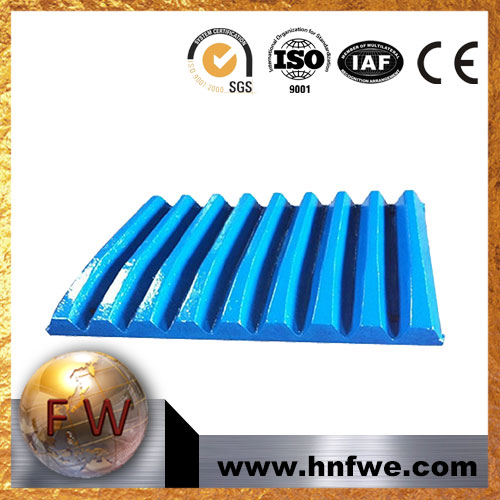

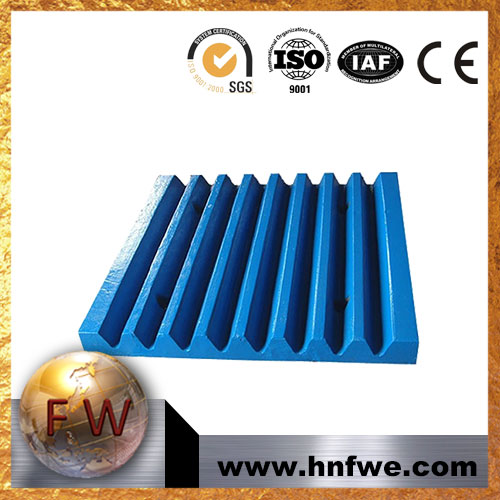

Jaw Crushing Plate Compatible with Metso,sandvik,symons
OEM Jaw crusher Parts Our jaw plates are made of high manganese steels which are of good quality and long service life. We produces various crusher in finished set such as jaw crusher, impact crusher,
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12 |
|---|---|
| Compatible Brand | Metso, Sandvik, Symons |
| Compatible Model | Metso GP100, Metso GP300, Metso GP500, Metso HP100, Metso HP200 |
Specifications
| Parameter | Value |
|---|---|
| Product Name | Jaw Crushing Plate Compatible with Metso,sandvik,symons |
| Category | Cone Crusher Parts |
| Applicable Brand | Metso, Sandvik, Symons |
| Applicable Model | Metso GP100, Metso GP300, Metso GP500, Metso HP100, Metso HP200 |
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12 |
| Surface Treatment | Sand Blast |
| Hardness | HRC 22-25, HRC 58-62 |
| Origin | Hunan, China |
| Certification | ISO9001:2008 |
| Customization | Available (drawing/sampling) |
Product Details
OEM Jaw crusher Parts
Our jaw plates are made of high manganese steels which are of good quality and long service life.
We produces various crusher in finished set such as jaw crusher, impact crusher, hammer crusher, cone crusher, roller crusher, and other matching equipment such as, vibrating feeder, vibration screen, sand washer , belt conveyor and kinds of accessories of the crusher.
Material:
1).High Manganese Casting:
Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi…
2).High Chrome Steel:
Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
Cr25Mo0.5Ni0.5…
3).Any other material as customer’s requirement.
Chemical Component of jaw plate:
| Material | C | Mn | Cr | Si | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|
| Mn13Cr2 | 1.0~1.4 | 12~15 | 1.7~2.2 | 0.3~1.0 | - | - | - |
| Mn18Cr2 | 1.0~1.4 | 17~19 | 1.8~2.2 | 0.3~1.0 | - | - | - |
| Cr12 | 2.0~3.3 | ≤2.0 | 11~14 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr15 | 2.0~3.3 | ≤2.0 | 11~14 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr20 | 2.0~3.3 | ≤2.0 | 14~18 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr26 | 2.0~3.3 | ≤2.0 | 23~30 | ≤1.2 | ≤3.0 | ≤2.5 | ≤2.0 |
Manufacturing detail of jaw plate:
| High manganese jaw plate | |
|---|---|
| Name | Jaw plate, swing jaw plate, fixed jaw plate, toggle plate,movable jaw,fixed jaw,jaw crusher jaw |
| Material | Mn13Cr2( M1 equivalent grades),Mn18Cr2(M2 equivalent grades) |
| Control | Spectrometer chemical analysis and control while producing |
| Molding Process | Water-glass sand casting or lost form casting |
| Melting facility | Medium frequency electric furnace |
| Heat Treatment | Anneal, quenching, tempering |
| Quality Guarantee | One year against manufacturing defeat |
| Testing | Hardness, flaw detector test |
| Certificate | ISO9001~2008 Passed; BUREAU VERITAS |
| Application | Cement firms, coal fired power plant ,mining firms ,metallurgy ,quarry firms |
Our advatages
1.Abundant technology, advanced production, sophisticated processing equipment and completed inspection facility
-
Every process being controlled and every machine and spare parts being inspected.
-
We will provide with one-stop services, real-time tracking and co-operation you.
-
Authorized by the National ISO9001 quality system.
**We can supply various brands compatible crusher parts according to brand model type and part number as below:
Metso crusher spares:**
GPSeries - GP100 | GP11F | GP11M | GP300 | GP500,
HPSeries - HP100 | HP200 | HP300 | HP400 | HP4 | HP500 | HP700 | HP800
C Series - C63 | C80 | C95 | C96 | C100 | C105 | C106 | C110 | C116 | C125 | C140 | C145 | C160 | C200
Sandvik crusher spares:
CH Series - CH420 | QH330 | CH430 | CH440 | CH660 | CH780 | CH880
H Series - H2800 | H3800 | H4800 | H6800 | H7800 | H8800
CS Series - CS420 | CS430 | CS440 | CS660
S Series - S2800 | S3800 | S4800 | S6800
JM Series - JM806 | JM907 | JM1107 | JM1108 | JM1208 | JM1211 | JM1312 | JM1511 | JM1513
CJ Series - CJ411 | CJ412 | CJ612 | CJ613 | CJ615 | CJ815
QJ Series - QJ240 | QJ241 | QJ340 | QJ341
UJ Series - UJ310 | UJ440i | UJ440E | UJ540 | UJ640
CM Range - CM1208i | CM1208F | CM1211 | CM1511
Symons crusher spares:
2FT | 3FT | 4FT | 48004¼ FT | 51005½ FT | 7FTStandard and Shorthead
Telsmith crusher spares:
36S&FC | 48S&FC | 52S&FC | 57S&FC | 66S&FC 38SBS | 44SBS | 52SBS | 57SBS | 68SBS
China standard:PYB/D/Z–600 | 900 | 1200 | 1750 | 2100 | 2200
Huayang S Series:S75 | S155 | S240 | S340
