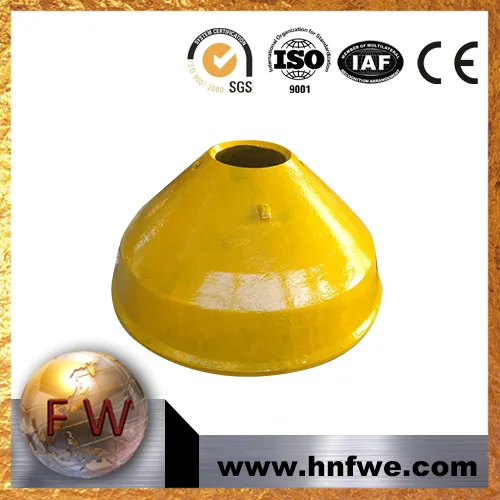

METSO cone crusher replacement parts
METSO cone crusher replacement parts is a Cone Crusher Parts produced by Fengwei. Made from Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, it offers excellent wear resistance and impact toughness. Compatible with Metso crushers such as Metso GP100. Aftermarket wear parts are available by drawing or sample, ISO 9001 certified.
Product Specifications
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
|---|---|
| Compatible Brand | Metso |
| Compatible Model | Metso GP100, Metso GP300, Metso GP500, Metso HP100, Metso HP200 |
Applications: Mining, Quarry, Aggregate, Cement, Recycling
Customization: aftermarket by drawing or sample. Materials customizable (Mn13 ~ Mn22Cr2, High Chrome, Tungsten Carbide).
Technical Parameters
| Parameter | Value |
|---|---|
| Product Name | METSO cone crusher replacement parts |
| Category | Cone Crusher Parts |
| Applicable Brand | Metso |
| Applicable Model | Metso GP100, Metso GP300, Metso GP500, Metso HP100, Metso HP200 |
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
| Surface Treatment | Sand Blast |
| Hardness | HRC 22-25, HRC 58-62 |
| Origin | Hunan, China |
| Certification | ISO9001:2008 |
| Customization | Available (drawing/sampling) |
Product Details
METSO Cone Crusher replacement parts
Wecan supply kinds of crusher parts such as jaw plates,mantles,concave,copper sleeves,frame,bearing,hammer,blow bars,feeder,head centre,main shaft,main shaft sleeve,torch ring,fixed jaw,swing jaw,etc,for the below crushers with good quality,competitive price and quick delivery.
High Manganese series
Wear Parts for Mining equipment
Main application for high wear resistance use such as Jaw crusher plate, Cone crusher bowl liner, Impact crusher lining board,Ball mill liner and the chain links for Dredge ect..
Material:
1).High Manganese Casting:
Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi…
2).High Chrome Steel:
Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
Cr25Mo0.5Ni0.5…
3).Any other material as customer’s requirement.
High Manganess Casting Material Chemical Composition(%)
| Material Code | C | Mn | Si | Cr | P | S |
|---|---|---|---|---|---|---|
| ZGMn13Cr2 | C:0.9-1.3 | Mn:11.0-14.0 | Si:0.3-1.0 | Cr:1.5-2.5 | P:≤0.06 | S:≤0.04 |
| ZGMn18Cr2 | C:1.1-1.5 | Mn:16.5-19.0 | Si:≤0.8 | Cr:1.5-2.5 | P:≤0.07 | S:≤0.04 |
| ZGMn22Cr2 | C:1.1-1.4 | Mn:20-24 | Si:≤0.8 | Cr:1.5-2.5 | P:≤0.07 | S:≤0.04 |
We can supply METSO Aftermarket CONE CRUSEHR PARTS as below:
GPSeries - GP100 | GP11F | GP11M | GP300 | GP500,
HPSeries - HP100 | HP200 | HP300 | HP400 | HP4 | HP500 | HP700 | HP800
C Series - C63 | C80 | C95 | C96 | C100 | C105 | C106 | C110 | C116 | C125 | C140 | C145 | C160 | C200
Product Advantages
