PE 600*900 750*1060 Fixed Jaws Movable Jaw Plates
PE 600*900 750*1060 Fixed Jaws Movable Jaw Plates is a Cone Crusher Parts produced by Fengwei. Made from Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12, it offers excellent wear resistance and impact toughness. Aftermarket wear parts are available by drawing or sample, ISO 9001 certified.
Product Specifications
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12 |
|---|
Applications: Mining, Quarry, Aggregate, Cement, Recycling
Customization: aftermarket by drawing or sample. Materials customizable (Mn13 ~ Mn22Cr2, High Chrome, Tungsten Carbide).
Technical Parameters
| Parameter | Value |
|---|---|
| Product Name | PE 600900 7501060 Fixed Jaws Movable Jaw Plates |
| Category | Cone Crusher Parts |
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome, Cr12 |
| Surface Treatment | Sand Blast |
| Hardness | HRC 22-25, HRC 58-62 |
| Origin | Hunan, China |
| Certification | ISO9001:2008 |
| Customization | Available (drawing/sampling) |
Product Details

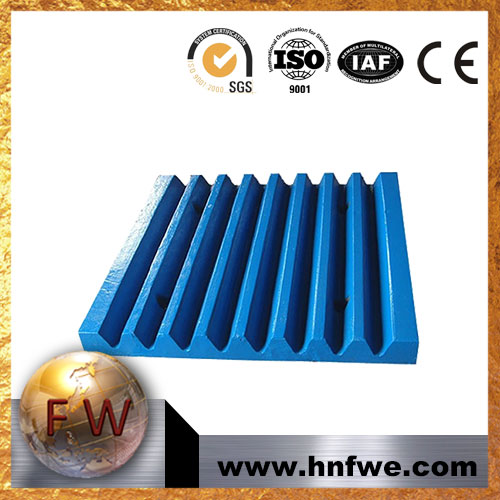

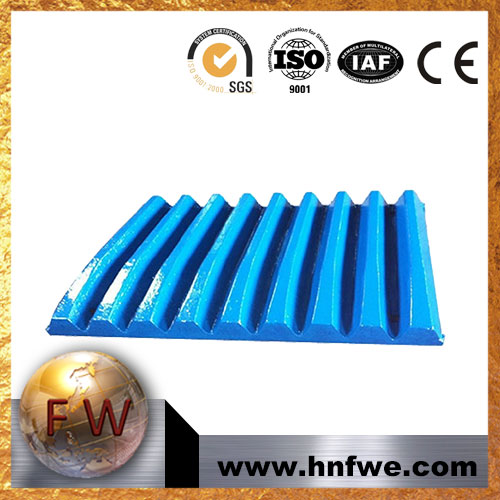

Our jaw plates are made of high manganese steels which are of good quality and long service life.
We produces various crusher in finished set such as jaw crusher, impact crusher, hammer crusher, cone crusher, roller crusher, and other matching equipment such as, vibrating feeder, vibration screen, sand washer , belt conveyor and kinds of accessories of the crusher.
-High Manganese series
–Wear Parts for Mining equipment

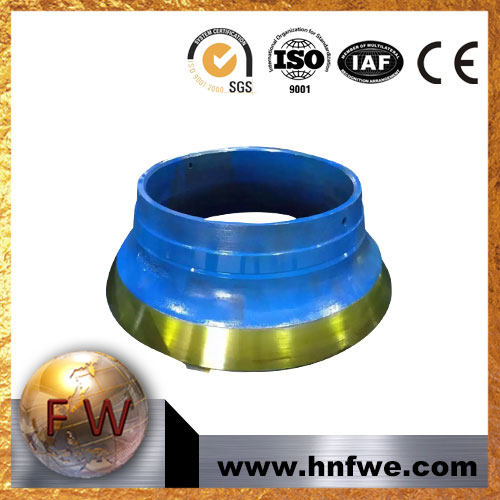

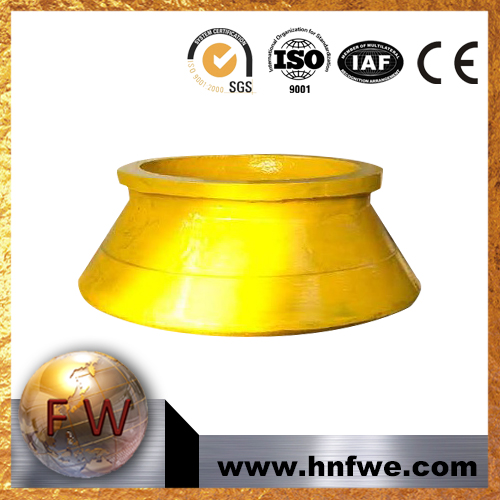

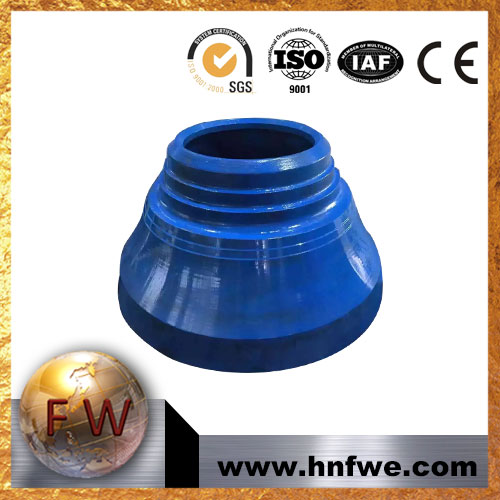

Main application for high wear resistance use such as Jaw crusher plate, Cone crusher bowl liner, Impact crusher lining board,Ball mill liner and the chain links for Dredge ect..
Material:
1).High Manganese Casting:
Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi…
2).High Chrome Steel:
Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
Cr25Mo0.5Ni0.5…
3).Any other material as customer’s requirement.
Chemical Component of jaw plate:
| Material | C | Mn | Cr | Si | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|
| Mn13Cr2 | 1.0~1.4 | 12~15 | 1.7~2.2 | 0.3~1.0 | - | - | - |
| Mn18Cr2 | 1.0~1.4 | 17~19 | 1.8~2.2 | 0.3~1.0 | - | - | - |
| Cr12 | 2.0~3.3 | ≤2.0 | 11~14 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr15 | 2.0~3.3 | ≤2.0 | 11~14 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr20 | 2.0~3.3 | ≤2.0 | 14~18 | ≤1.2 | ≤3.0 | ≤2.5 | ≤1.2 |
| Cr26 | 2.0~3.3 | ≤2.0 | 23~30 | ≤1.2 | ≤3.0 | ≤2.5 | ≤2.0 |
PE/PEX Series Jaw Crusher model as below:
| PE-400×600 |
|---|
| PE-500×750 |
| PE-600×900 |
| PE-750×1060 |
| PE-800×1060 |
| PE-870×1060 |
| PE-900×1200 |
| PE-1000×1200 |
| PE-1200×1500 |
| PEX-250×1000 |
| PEX-250×1200 |
| PEX-300×1300 |
Product Advantages
