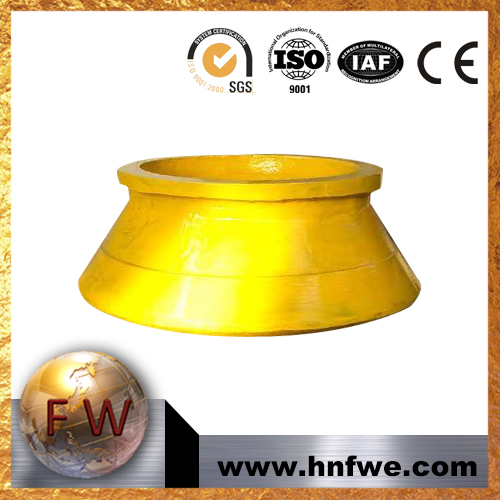

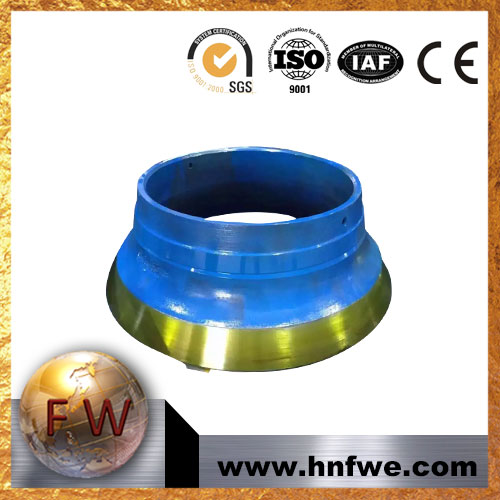

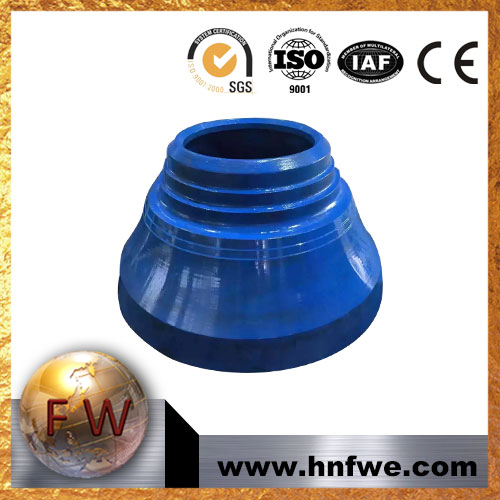

Sanme Cones Liner for Sdy Series Spring Cone Crusher
High Manganese series Wear Parts for Mining equipment Main application for high wear resistance use such as Jaw crusher plate, Cone crusher bowl liner, Impact crusher lining board,Ball mill liner and
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
|---|
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanme Cones Liner for Sdy Series Spring Cone Crusher |
| Category | Cone Crusher Parts |
| Material | Mn22Cr2, Mn18Cr2, Mn13Cr2, Mn13, High Chrome |
| Surface Treatment | Sand Blast |
| Hardness | HRC 22-25, HRC 58-62 |
| Origin | Hunan, China |
| Certification | ISO9001:2008 |
| Customization | Available (drawing/sampling) |
Product Details
High Manganese series
Wear Parts for Mining equipment

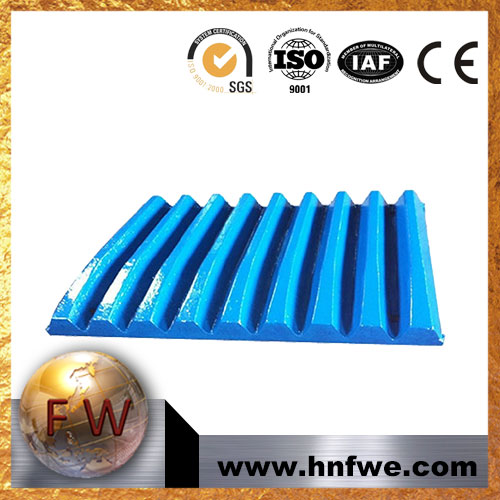

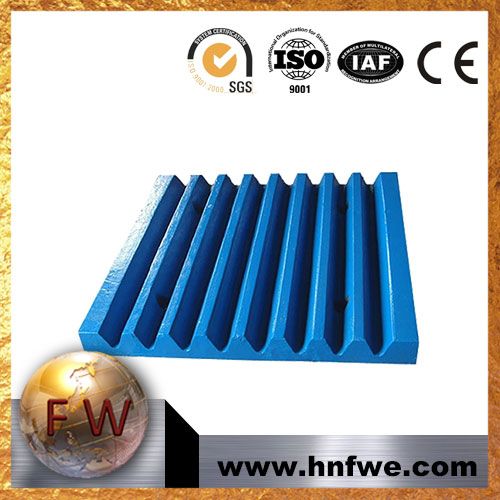

Main application for high wear resistance use such as Jaw crusher plate, Cone crusher bowl liner, Impact crusher lining board,Ball mill liner and the chain links for Dredge ect..
Features and Advantages:
-
High Manganese Casting wear parts processed by our foundry, using special heat-treatment process.It has a service life 10% longer than those made of traditional high manganese steel.Our products with good performance in different working condition can greatly decrease the time of examination & repair and the use-cost
-
Use: wear parts for crushers in the quarry, mining, cement aggregate, recycling, shredding and demolition fields. etc. 3. Certifications: ISO900:2008.
-
Production quality testing: hardness testing, metallographic structure, machinery performancesting,ultrasonic inspection, high frequency infrared carbon and surface analysis etc.
-
Competitive products: good quality with reasonable price.
-
Strong wear resistance and long life span, can be used in harsh environment and serious abrasion.
-
Professional: our factory has over 30 years working experience in wear resistant casting parts.
-
We can provide customized design according to our clients’ demand
Material:
1).High Manganese Casting:
Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi…
2).High Chrome Steel:
Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
Cr25Mo0.5Ni0.5…
3).Any other material as customer’s requirement.
High Manganess Casting Material Chemical Composition(%)
| Material Code | C | Mn | Si | Cr | P | S |
|---|---|---|---|---|---|---|
| ZGMn13Cr2 | C:0.9-1.3 | Mn:11.0-14.0 | Si:0.3-1.0 | Cr:1.5-2.5 | P:≤0.06 | S:≤0.04 |
| ZGMn18Cr2 | C:1.1-1.5 | Mn:16.5-19.0 | Si:≤0.8 | Cr:1.5-2.5 | P:≤0.07 | S:≤0.04 |
| ZGMn22Cr2 | C:1.1-1.4 | Mn:20-24 | Si:≤0.8 | Cr:1.5-2.5 | P:≤0.07 | S:≤0.04 |
